Name:10/100/1000M Dual Fiber
Data Rate:10/100/1000Base-T to 1000Base-FX Fiber Optic Media Converter
Fiber Mode:Multimode,Single mode
Wavelength:1310nm, 1550nm
Fiber Connector:SC standarnd,FC/ST optional
Distance:From 2km to 80km
Transmission Mode:Half duplex or full duplex
Power Supply:External/Internal
Power Adaptor:Euro, American, UK Standard, etc
Optical Function:LFP ( DIP Switch) , Vlan

Product Description

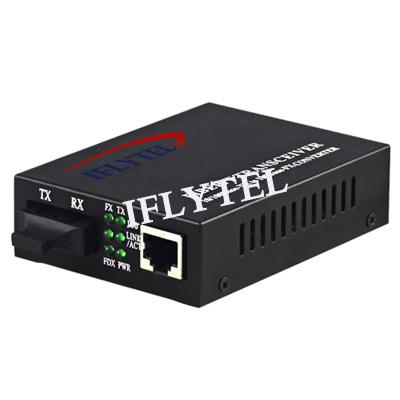

10/100/1000M Fiber Media Converter translates the signal from a twist-pair 10/100/1000Base-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 100km by fiber optic cable, with Lightning-protection function.

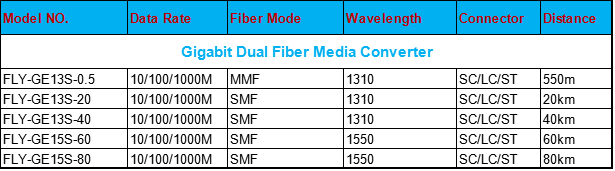

IFLYTEL Models of 10/100/1000Base-T to 1000Base-FX Fiber Optic Media Converter:

Performance Feature:

1, 10/100/1000Mbps auto-sensed, easily upgrade

2, Full-duplex and half-duplex auto-sensed

3, MDI/MDI-X Auto Negotiation

4, 10/100/1000Mbps store-and-forward

5, Support 10K Jumbo Frame

6, Build-in Lightning-protection chipset

7, Supporting VLAN / VoIP /QoS packets

8, Support flow control and reduce broadcast packets

9, Supporting STP to form a redundant network

10, Providing Desktop, Wall-mounted, Chassis, DIN-rail installation
