Name:ABS CWDM Mux/Demux
Channel:4CH 8CH 16CH Etc
Channel Spacing:20nm
Fiber Types:Bare, 0.9mm, 2.0mm, 3.0mm
Length:1M, 2M, Custimized

Product Description

Iflytel offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fiber Channel, FTTx and CATV.


Our CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGXpackage and 19” 1U rackmount.

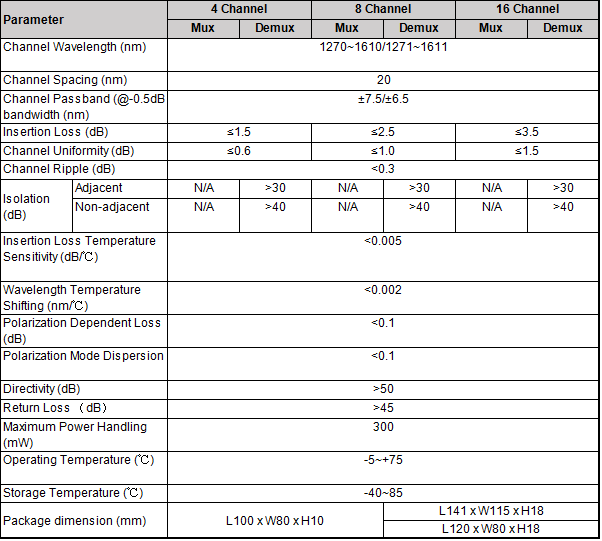

Performance Feature:

Low Insertion Loss

Wide pass band

High Channel Isolation

High Stability and reliability

Epoxy-free on Optical Path

Access Network

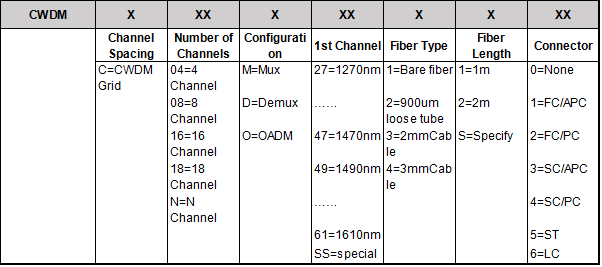

Order Information:



Line Monitoring

WDM Network


Cellular Application

Fiber Optical amplifier

Acess Network
