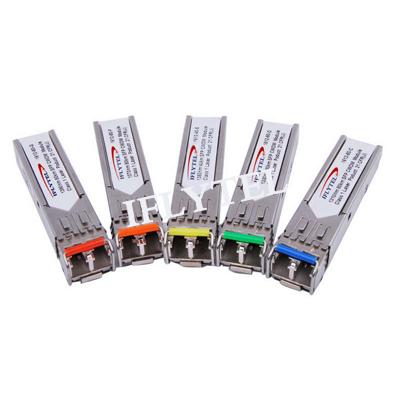

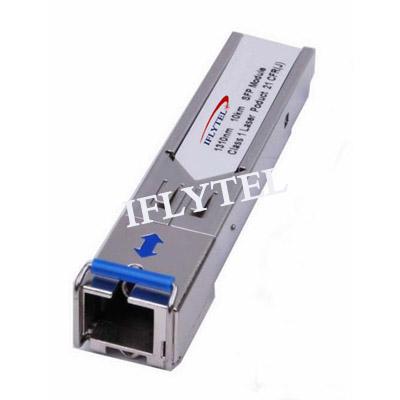

Name:SFP Duplex
Data Rate:155M/622M/1.25G/2.5G/4G
Fiber Types:Single Mode (SM), Multimode (MM)
Fiber Connector:LC/SC/RJ45
Transmission Distance:2km,10km, 20km, 40km, 50km, 80km, 120km, 160km
Laser Type:FP laser and PIN/APD photo-detector
DDM Function:With or without both available
Compatible Brands:Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

Product Description

The SFP transceiver is compliant with the specifications the SDH/SONET/IEEE802.3 and the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. Dual LC type pluggable optical interfaces; hot-pluggable; low power consumption; support digital diagnosis function; the metal shell shielding electromagnetic interference; in line with the RoHS standard; wide compatibility; operating temperature range: 0 DEG -70 DEG. IFLYTEL provide a wide range of double fiber SFP optical module, multi to single mode, 160 km to cover the maximum distance support to 2.5Gbps,rate, temperature support industry standard.

Performance Feature:


1, Complies with IEEE 802.3, 802.3u, and 802.3ab specifications

2, Conforms to Multi-Source Agreement (MSA) specifications for SFP transceivers

3, Supports IEEE 802.3u and IEEE 802.3ab auto–negotiation; features to allow networking equipment to automatically determine and adjust the required settings

4, Automatically compensates for baseline wander by removing the DC offset from the input signal

5, Assembled with low EMI emissions IC and fully metallic housings

6, Automatic dependent interface (DI) crossover, eliminating the need for crossover cables or cross-wire (MDIX) ports

7, Bail latch provides ease of extraction

8, Compact RJ45 connector assembly

9, Data is scrambled to reduce radiated emission

10, Fully RoHS compliant

11, Very low EMI and excellent ESD protection

12, Distance from SX 0.5km to ZX 150km


 Gigabit Ethernet

 Fiber Channel

 Switch to Switch interface

 Switched backplane applications

 Router/Server interface

 Other Optical Links


Quality Certification:

Good Anti-electromagnetic interference (EMI)

Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificate

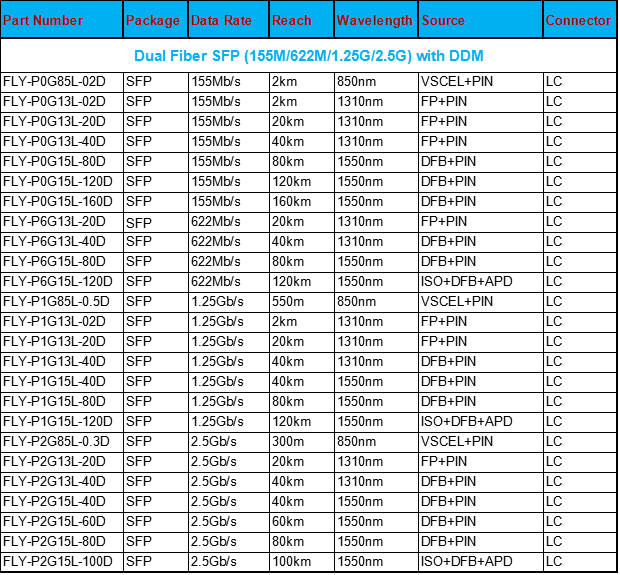

Order information:
