The newest module standard is the enhanced small form-factor pluggable transceiver, generally called SFP+. Based on the small form-factor pluggable transceiver (SFP) and developed by the ANSI T11 fibre channel group, it is smaller still and lower power than XFP. Dual LC type pluggable optical interfaces; hot-pluggable; Full Metal Jacket shielding electromagnetic interference; RoHS compliant; small size design; broad compatibility; support for digital diagnostic functions; Operating temperature range: 0 ℃ -70 ℃ (commercial grade ) -40ºC ~ + 85ºC (industrial grade) meet the SFP + MSA Olink norms and standards for photovoltaic IEEE802.3ae SFP + optical module is designed for ultra high-speed fiber-optic data communications Gigabit Ethernet. The optical module has a smaller size and lower cost, providing access to the highest density, will greatly meet the increasing end-user demand for data applications. The maximum distance covered 80 km.

Performance Feature:

1, Compliant with SFF-8431, SFF-8432 and IEE802.3ae

2, Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

3, RoHS compliant and lead free

4, Low power consumption

5, All-metal housing for superior EMI performance

6, Advanced firmware allow customer system encryption information to be stored in transceiver

7, Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Application:

10G Ethernet

10G link network

Fibre Channel

CPRI and OBSAI

Quality Certification:

Good Anti-electromagnetic interference (EMI)

Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates

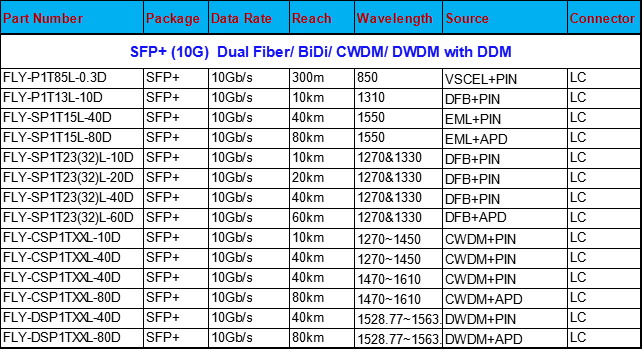

Order information:
