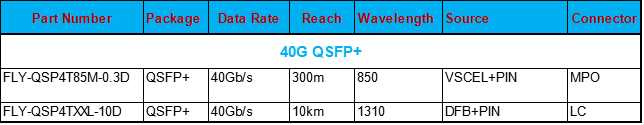

Name:40G QSFP+
Data Rate:40G
Fiber Types:OM4 MMF, 62.5/125µm SMF
Fiber Connector:Duplex LC/ MTP/MPO
Transmission Distance:150m/2km/10km
Laser Type:850nm VSCEL/1310nm DFB
DDM Function:With
Compatible Brands:Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

Product Description

The Quad Small Form-factor Pluggable (QSFP) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces networking hardware to a fiber optic cable. It is an industry format jointly developed and supported by many network component vendors, allowing data rates from 4x10 Gbit/s. QSFP+ is a hot-pluggable high-density transceiver which provides 4 channels of traffic in each direction (Tx and Rx). QSFP+ supports up to 14 Gb/s per channel for applications such as 40G Ethernet, InfiniBand QDR or FDR, and OTN OTU3. Both multimode and single mode versions of the QSFP+ module are available, as well as QSFP-based active optical cables (40G Quadwire and 56G Quadwire).


Performance Feature:

1, QSFP+ MSA, SFF-8436 compatible

2, Four independently addressable transmit and receive channels

3, Highly compact: savings of 60% on edge and board usage compared to four comparable SFP+ modules

4, Electrically hot-pluggable

5, XFP-like latch mechanism for ease-of-insertion

6, Digital Diagnostics Monitoring Interface allows customer management and monitoring of key modules parameters, analogous to SFP+

7, Optical connectivity via industry standard MPO/MTP terminated fiber ribbon



40G Campus Link

40G Telecom connections

Data Centers

High-speed interconnects within and between switches, routers and transport equipment

Server-Server Clusters, Super-computing interconnections

Proprietary backplanes

Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

10GBASE-SR applications

40GBASE applications

InfiniBand SDR, DDR and QDR applications


Quality Certification:


Good Anti-electromagnetic interference (EMI)

Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates
