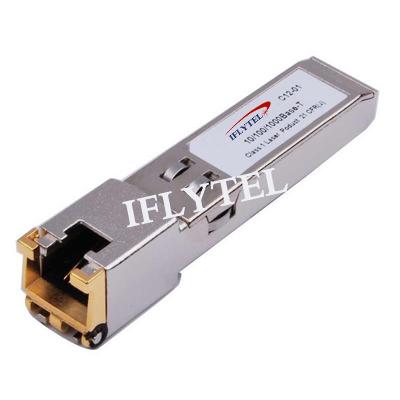

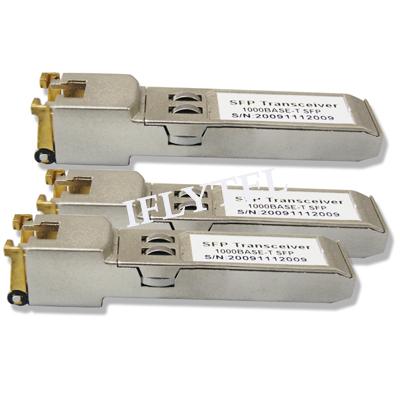

RJ45 Copper SFP Transceivers Support 10/100/1000 Mbps data-rate in excess of 100 meters (325 feet) reach over UTP Category 5/5e cables, the robust SFP-1GBT-05 transceiver module is ideally suited for implementing small form-factor Network Interface Cards (NICs) and uplinks. As such, it is highly appropriate for use in such high-density applications as LAN 1000BASE-T, switch-to-switch interfaces, switched backplanes, blade servers, gaming devices, and router/server interfaces.

Performance Feature:

1, Support 1000BASE-T operation in Host Systems or 10/100/1000 BASE-T operation in host systems with SGMII interface

2, 100m Reach over UTP Cat5 Cable

3, Hot-Pluggable SFP Footprint

4, Fully Metallic Enclosure for Low EMI

5, Low Power Dissipation (1.05W Typical)

6, Compact RJ-45 Connector Assembly

7, Access to Physical Layer IC via 2-Wire Serial Bus

8, Detailed Product Information in EEPROM

9, Compliant with SFP MSA

10, Commercial or Industrial case temperature range

11, Compliant with IEEE Standard 802.3-2002

12, Up to 1.25Gbps data links

13, Support intelligent auto-negotiation 1000BASE-T

14, SGMII interface hot-pluggable

15, SFP form with compact RJ-45 connector

16, Very low EMI and excellent ESD protection

17, Low power dissipation

18, Detailed product information in EEPROM

19, 100m transmission over unshielded twisted pair (UTP) Cat5 Cable

20, With spring latch for high density application

21, RoHS compliant

Application:

networking equipment

routers and switches
