Name:10/100M Single Fiber
Data Rate:Fast Ethernet 10/100Base-TX to 100Base-FX
Fiber Mode:Bi-di optional
Wavelength:1310nm/1550nm, 1490/1550nm
Fiber Connector:SC standarnd,FC/ST optional
Distance:From 2km to 120km
Transmission Mode:Half duplex or full duplex
Power Supply:External/Internal
Power Adaptor:Euro, American, UK Standard, etc
Optical Function:LFP ( DIP Switch) , Vlan

Product Description

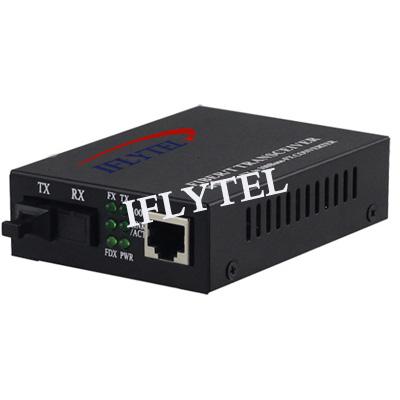

10/100M Fiber Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable.

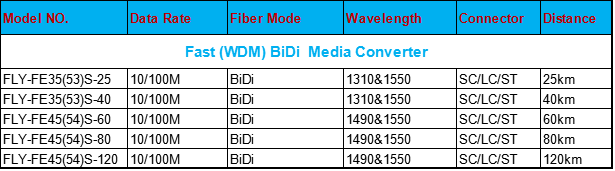

IFLYTEL Models of 10/100Base-T to 100Base-FX  Fiber Optic Media Converter:


Performance Feature:

1, 10/100Mbps auto-sensed, easily upgrade

2, full-duplex and half-duplex auto-sensed

3, MDI/MDI-X Auto Negotiation

4, 10/100Mbps store-and-forward

5, 100Mbps cut-through transmission

6, Packet size up to1518bytes

7, Supporting VLAN / VoIP /QoS packets

8, Support flow control and reduce broadcast packets

9, Supporting STP to form a redundant network

10, Extremely low power consumption, low heat, stable performance

11, Providing Desktop, Wall-mounted, Chassis, DIN-rail installation



    Network Communication

    FTTH / FTTB / FTTx

    ISP Backhaul Networking
