Name:100G 200G DWDM Module
Channel:4CH 8CH 16CH Etc
Channel Spacing:100/200
Fiber Types:Bare, 0.9mm, 2.0mm, 3.0mm
Length:1M, 2M, Custimized

Product Description

Iflytel's 100GHz/200GHz wavelength multiplexer (100,200G DWDM OADM Module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.

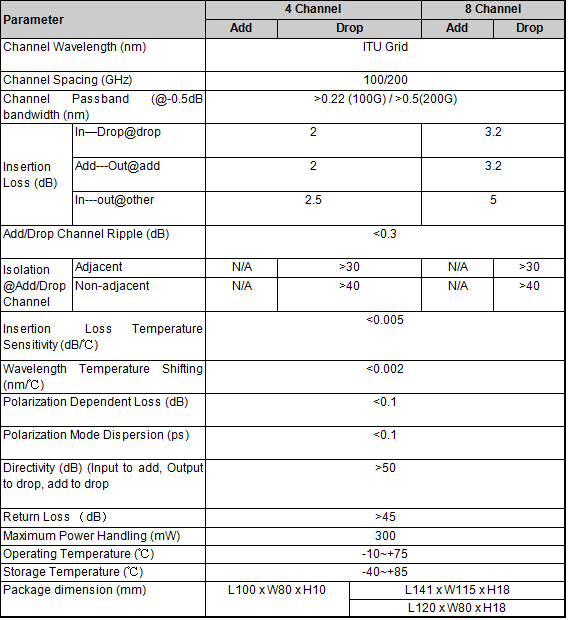

Performance Feature:

ITU channel spacing

Low insertion loss

Wide pass band

High Channel Isolation

High Stability and reliability

Epoxy-free on Optical Path

Access Network

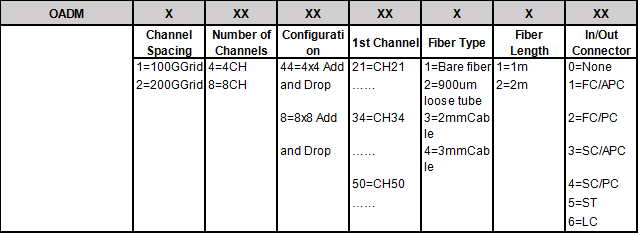

Order Information:


Channel Add/Drop

DWDM Network

Wavelength Routing

Fiber Optical amplifier

CATV fiber optic System
