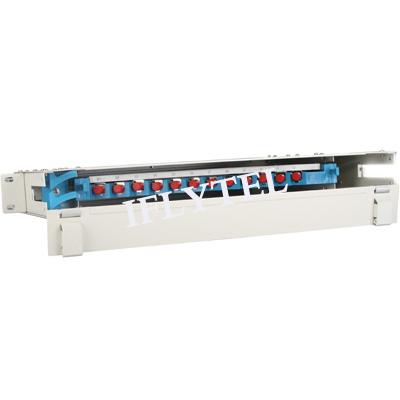

Name:Rack Mount Patch Panel
Type:Fixed, Sliding
Fiber number:8/12/24/48/72/96/144 cores
Splicer Tray:None, 12cores, 24cores
Color:Black, White, Grey
Assemble:None, with Adaptor, with Adaptor and Pigtail

Product Description

Rack-mount fiber optic distribution frame is made of cold-rolled steel, modular design, with splice tray units inside and could be pre-installed with various kinds  of fiber optic adapters and pigtails. The proper design controls the bend radius of the cable inside the enclosure to avoid extra optical loss.

Performance Features:

Modular design with splicing and distribution function

12 cores distribution and splicing unit has the function of storage for maximum 2m pigtail

Splice tray units inside changeable

Various panel plates to fit different adapter interface

Can be fit for the pigtail or ribbon fan-out pigtail, suitable for 19'' or 23'' standard ODF

Standard size, light weight and reasonable structure

The mark in the front panel is for the easy identification, easy operation


1U~4U height fiber optic distribution frame

12~144F capacity

FC,SC Adapter ports

19'',23'' size


Order Information:


Telecommunications subscriber loop

Fiber to the home (FTTH)
