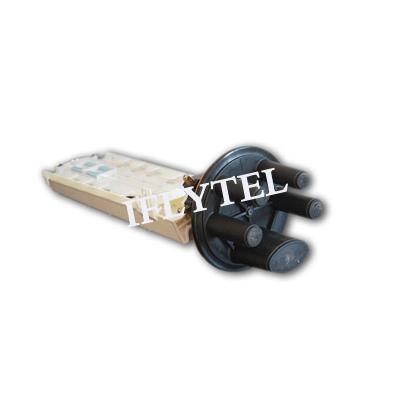

Name:24 cores Dome Splicer Closure
Material:ABS, PP, PC
Maximum Cores:144 (Single Core)
Maximum Trays:3 Tray
Cable Ports:1 Big Oval Port+4 Small Round Ports
Protection Level:IP68

Product Description

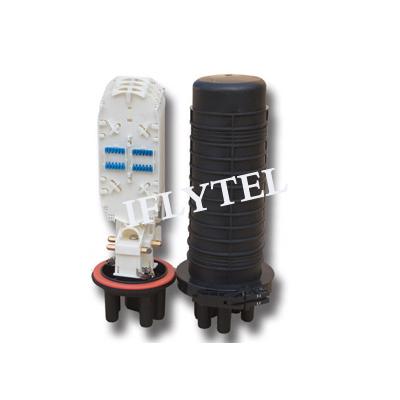

24 cores FTTH fiber optic connection closure , IP68 Dome type fiber optic splice closure.1 oval port+4 round ports;Max 3 trays and 144 cores;Suit for 8-25mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..


Performance Feature:


1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port and 4 small round ports

4. Maximum Trays: 3 trays

5. Maximum Cores:144(singlel core)

6. Dimension (HxD):540mm *150 mm

7. Package material:Carton

8. Weight:4.0-4.5Kg

9. Cable diameter range:8-25mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years






Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..

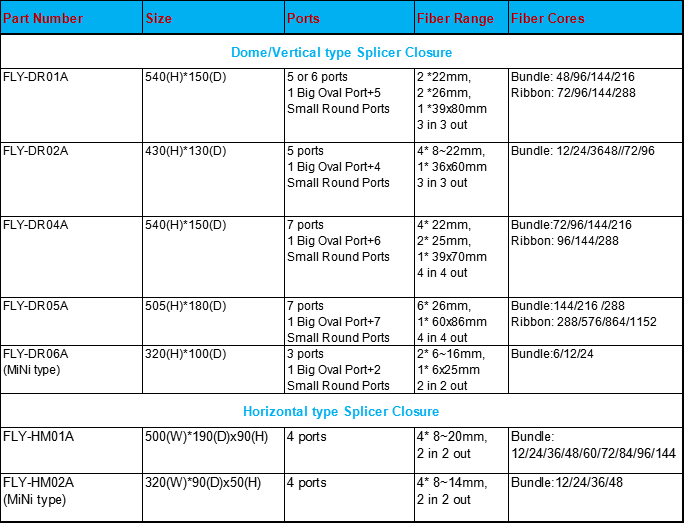

No.of ports

Cable range

 Max trays


Max Capacity





144 cores




Competitive Advantage:

Easy & fast installation with no special tools,suit for uncut cables

Superior sealing performance(free sample for testing)

The closure can be repeatly used many times.

The cables can be fixed via 3 points,safe and reliable

Big capacity.Enough space for surplus fibers inside the closure

Flexible branching for fibers

loose leaf type of splice tray fixing,easy operation

Modular fiber management system
