Name:FLY600 OTDR
Wavelength:850/1300/1310/1490/1550/1625 optical
Dynamic range:21/23/26/28/30/32/34/36/38... optical
Fiber Type:SM/MM
Iterface:FC/PC, FC/UPC, FC/APC
Power Adaptor:US/EU,UK,AU,JP etc

Product Description

Our OTDR With a short <2m dead zone the FLY600 is designed for FTTx application.  It can test the length, fiber loss connector loss and other physical characteristics of fiber. Also can locate events on fiber cables precisely. It is really the tool of choice for FTTx application installation and maintenance as well as for fiber R&D and producing testing.

FLY600 rugged design, lightweight and easy operation, as well as the low reflection LCD and more than 10 hours battery life make it be perfect in filed testing. Meanwhile, Its two USB & SD interfaces help to store and transfer traces easily and conveniently.

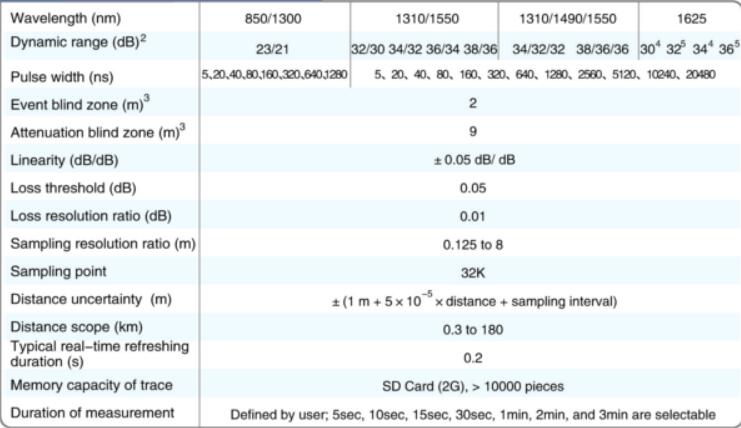

Performance Feature:

Applicable fiber: Single mode & Multimode

Built-in Visible Fault Locator (VFL)

<2m extra-short event dead zon

Wavelength: 850/1300nm, 1310/1490/1550/1625nm±20nm

Up to 38/36dB High Dynamic Range

Distance Range: 4,8,16,32,64,128,256km

Pulse with: 10,30,80,160,320,640,1280,5120,1024ns

640×480, 6.5 inch TFT-LCD (touch screen)

USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync

Memory capacity >800 traces

Built-in lithium battery with high capacity for over 8 hours of operating life

Display: Color LCD

Two year Warranty

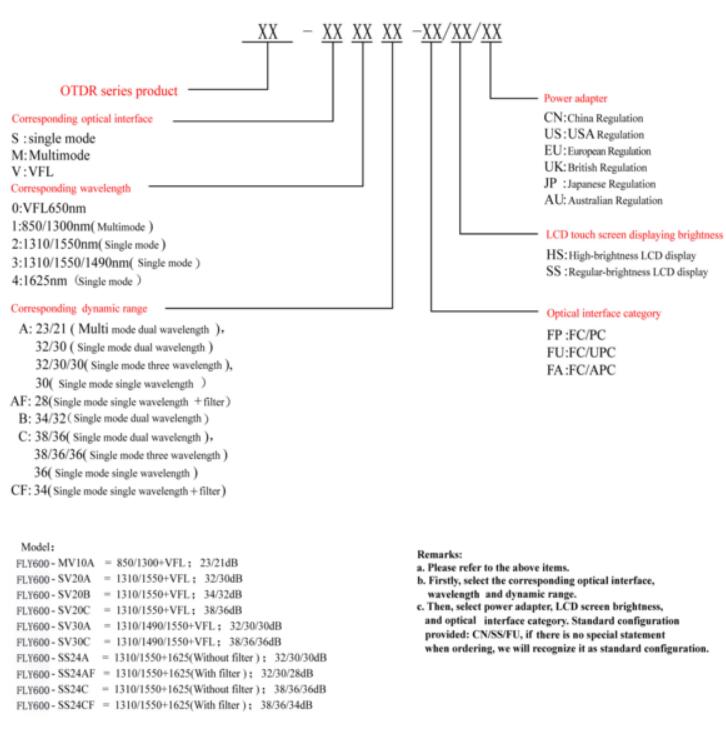

Order Information:


Standard Package:


Universal connector

SM Fiber Optic Patch Cord FC-SC 1M

Testing Report

AC/DC adapter

Quality certification

Trace analyzing software(CD)

Internal Battery

User Manual

Carrying Case
