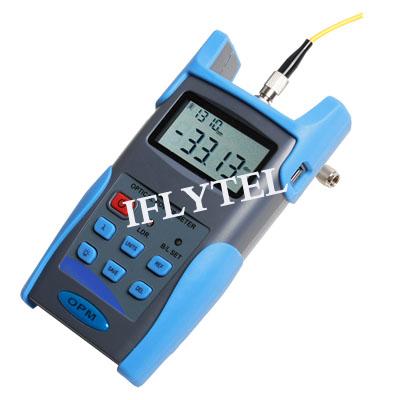

FLY3216 Handheld Optical Power Meter is Iflytel newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with FLY3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the FLY3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the FLY3216 features good appearance, good touch feeling and considerate humanity design.

Performance Feature:

Wave ID—Automatic wavelength identification and switching (when used with JW3116 handheld light source)

Frequency ID/Tone detection---Automatic frequency identification

Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

Data storage function, up to 1000 test records

USB communication port for saved testing records download

Reference power level can be set up and stored

User self calibration function

Auto-off function can be activated or deactivated.

AA alkaline and AC adapter for power supply

Low battery indication

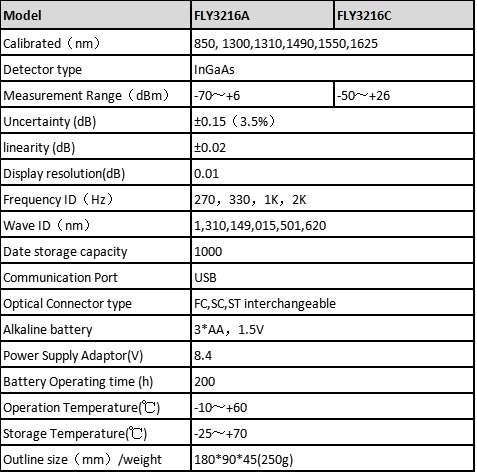

Specification:

Standard Package:

FLY3216 Optical Power Meter

3pcs 1.5V batteries

AC Adaptor

User Manual

Cotton swabs and Soft carrying case.
