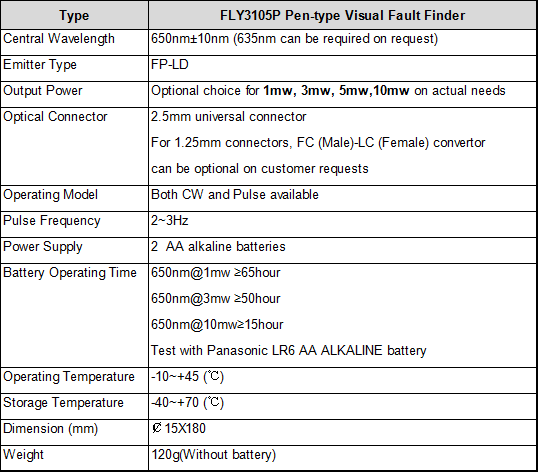

Name:Visual Fault Locator (Pen type)
Wavelength:650nm±10nm (635nm can be required on request)
Output Power:Optional choice for 1mw, 3mw, 5mw,10mw on actual needs
Connector:2.5mm, 1.25mm, Custimized

Product Description

FLY3105P Pen-type Visual Fault Locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network.

It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR dead zone

End-to-end visual fiber identificat

Performance Feature:

2.5mm universal connector, for 1.25mm connectors,

FC (Male)-LC (Female) convertor can be provided on requests.

Operates either in CW or Pulsed

Constant output power

Lower Battery warning

Long battery life (up to 60 hours)

Crash-proof and dust-proof design for laser head

Laser case ground design prevents ESD damage

Burning testing to ensure the reliability.

Portable and rugged, easy to use

Guarantee to CE standards include EMC, EMI, ROHS





Standard Package:


Main Unit (Original color)

2pcs Alkaline battery

User Manual

Cotton swabs and Soft Carrying case.
