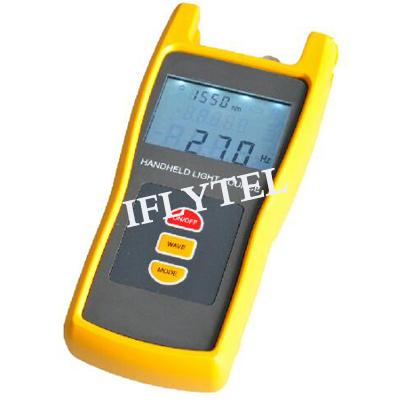

FLY3109 Handheld Optical Light Source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs.

Performance Feature:

Provides 1~4 output wavelengths which can be optional according to customer’s needs

CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.

High stability of the output power

Stable output wavelength

Backlight LCD display supports night operation

Compact size and decent appearance

Large LCD, easy operation

Alternative 10 minutes Auto-off function conserving battery life

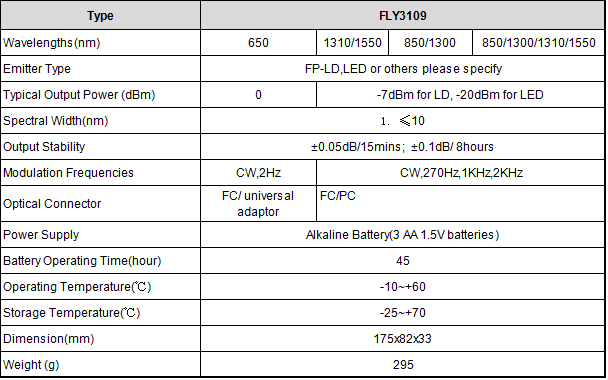

Specification:

Application:

Other Fiber Optic Measurements

Standard Package:

FLY3109 Optical Light Source

Protective Rubber Boot

3pcs 1.5V batteries

User Manual

Cotton swabs and Soft carrying case.
