4FE+CATV+WIFI+1TEL Single Fiber ONU FLY404HWI-Product Center-Shen Zhen Iflytel Telecommunication Co.,Ltd-

Location:Index--->Product Center >> GEPON ONU >> 4FE+CATV+WIFI+1TEL Single Fiber ONU FLY404HWI

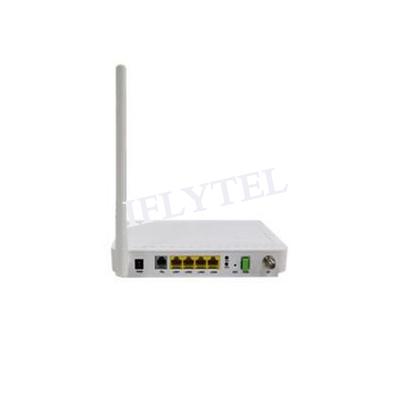

Name:	4FE+CATV+WIFI+1TEL Single Fiber ONU FLY404HWI
Material:	Plastic Case
PON Port:	1 EPON optical interface
Ethernet Port:	410/100M RJ45 ports
POTS Port:	1RJ11 ports
CATV Interface:	1 RF port
WiFi:	with WiFi

Product Description

ONU FLY404HWI( 4FE+1POTS+RF+Wi-Fi) is a FTTH bandwidth access equipment .vBased on mature and stable EPON technology, it has powerful functions with high stability ,sound QoS guarantee ,comprehensive management and flexible networking construction, etc . ONU FLY404HWI’s technology standard fully complies with ITU-T, IEEE and telecommunication technology standard.

It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

ONU FLY404HWI has 1 PON port ,1 POTS port, four 10/100BASE-T ports and one CATV output, support Wi-Fi function.

Performance Feature

In compliant with IEEE802.3ah Standard and CTC2.1

Up to 20KM transmission Distance

Support VLAN and IGMP

Support port isolation between different ports

Integrated OAM remote configuration and maintenance function

Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology

EMS network management based on SNMP ,convenient for maintenance

Full speed non-blocking switching.

Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

Support auto polarity detection of Ethernet ports (AUTO MDIX).

Integrated IEEE802.1p QoS with four level priority queues.

Support IPv4 IGMP snooping and IPv6 MLD snooping.

Voice Service Functions

Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol, and the soft switch platform the mainstream can be good intercommunication;

With the heartbeat function, support the main producing soft exchange platform;

Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm; echo cancellation conforming to ITU-T G.168-2002, an echo canceller for the longest 128ms;

Support high / low speed mode transparent transmission, T38 two fax;

Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm clock, abbreviated dialing and other value-added services;

Support 1 POTS interface and the three party call, three party support local mixing;

Support POTS port GR909 line test function;

Support dynamic PPPoE, DHCP and static IP;

7 * 24 hour call loss is less than or equal to 0.01%;

CATV Service Functions

Turn on/off RF output remotely

Wavelength：1550 +/- 10nm

Optical return loss：>45dB

Input optical power：-8dBm～+2dBm

RF frequency：47MHz~875MHz

RF output lever：75～80dBuV

CNR：>46dB，CSO: >58dBc，CTB: >58dBc
