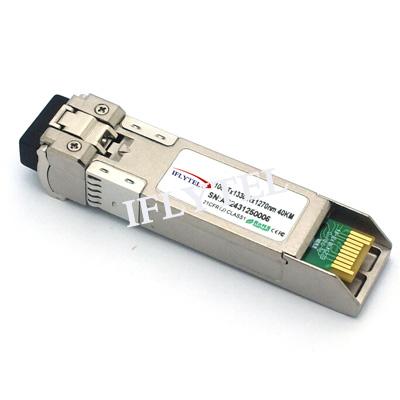

Name:SFP+ BiDi
Data Rate:9.95Gb/s to 10.3Gb/s
Wavelength:1270nm Tx 1330nm Rx/1330nm Tx 1270nm Rx
Fiber Types:Single Mode (SM)
Fiber Connector:LC
Transmission Distance:10km,20km, 40km,60km
Laser Type:DFB Laser diode transmitter, PIN or APD Receiver
DDM Function:With
Compatible Brands:Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

Product Description

WDM (BIDI) SFP+ transceiver is enhanced small form-factor pluggable fiber transceiver, which can work over 1 fiber using WDM technology sharing transmission directions into wavelengths of 1270nm and 1330nm. Single LC type pluggable optical interfaces; hot-pluggable; Full Metal Jacket shielding electromagnetic interference; RoHS compliant; small size design; broad compatibility; support for digital diagnostic functions; Operating temperature range: 0 ℃ -70 ℃ (commercial grade ) in line with SFP + MSA specifications and standards Olink IEEE802.3ae offers a wide range of optoelectronic 10G BIDI SFP + optical module applications bidirectional transmission scenarios. The optical module has a smaller size and lower cost, providing access to the highest density, will greatly meet the increasing end-user demand for data applications. The maximum distance covered 60 km.


Performance Feature:

1, Support 9.95Gb/s to 10.3Gb/s bit rates (10 Gigabit)

2, Hot-pluggable SFP+ footprint

3, Single Fiber 1270/1310nm DFB laser Transmitter and 1300/1270nm Receiver

4, SFP+ MSA package with LC connector

5, No reference clock required

6, Loop Back Support

7, +3.3V power supply

8, Power dissipation<2W

9, Compatible with RoHS

10, Built-in digital diagnostic function

11, EEPROM with Serial ID Functionality

12, Single Mode LC Receptacle Bi-directional Transceiver


WDM SFP+ Transceiver Applications:

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

10GBASE-BX 10G Ethernet

SDH STM I-64.1 at 9.953Gbps

10G Fibre Channel

10GE over G.709 at 11.09Gbps

OC192 over FEC at 10.709Gbps

Other optical links, up to 11.1Gbps

Quality Certification:


Good Anti-electromagnetic interference (EMI)

Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificate

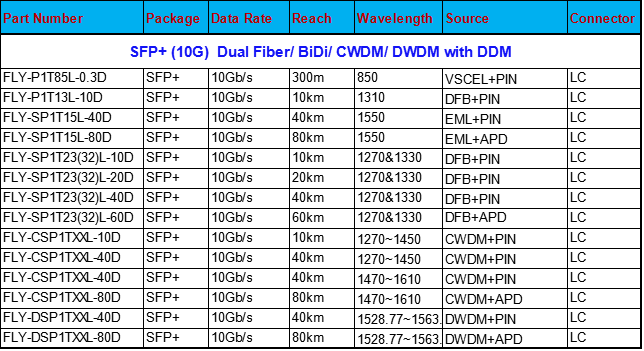

Order information:
