Product Description
10/100/1000M SFP media converter with SFP slot or USB power source.
10/1001000M SFP slot fiber media converter, which supports LFP (Link Fault Pass-through) function for easily tracing the network link failure.
LFP Fiber Media Converter can enhance the integrity and conformity of the TP-Fiber linking to improve the maintainability of the network. It is powered through external power adapter or uses power from USB port on the hosting device such as PC or NB. This unique idea of using USB port power offers great flexibility when deploying this converter. Six LEDs are provided to monitor the operation status of the converter and the DIP Switch on the front panel is used to set the required working configurations to meet various applications.

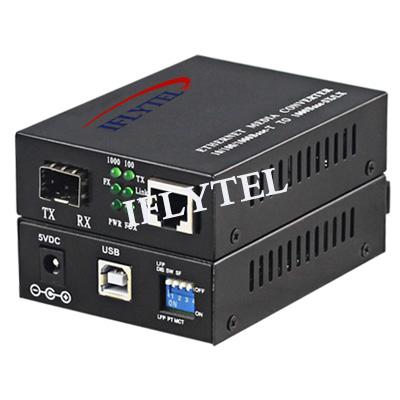

10/100/1000Base-T to 1000Base-FX with LFP Fiber Media Converter
Performance Feature:
1, 10/100/1000Mbps auto-sensed, easily upgrade
2, full-duplex and half-duplex auto-sensed
3, MDI/MDI-X Auto Negotiation
4, Built-in efficient switching core to implement flow control and reduce broadcast packets
5, LFP (Link Fault Pass-through) Function
6, External Power Adapter or USB power source
7, DIP Switch to set configurations
8, Supporting extra-long packets up to 1600 bytes

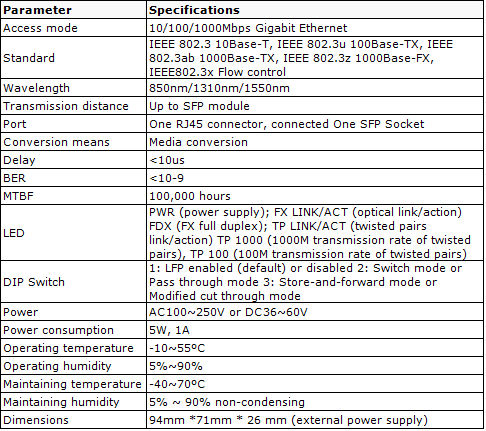

Specification:
Application:
Campus Are Networking
Enterprise Remote LAN Extension
Metro Ethernet Distribution
ISP Backhaul Networking
